Fun with Math!: Distance from a Point to a Line

If we have a point S and a line l that passes through point P and is parallel to vector v, then the shortest distance from point S to the line l is $d=\frac{|\overrightarrow{PS}\times\textbf{v}|}{|\textbf{v}|}$ .

The Forming of the Formula

Let's take a look on the process to get the formula. Let say point S₁ is the point on the line l which gives the shortest distance from point S to the line. As such, a right triangle PS₁S is formed. The distance of SS₁ (the shortest distance) can be found using the Pythagoras theorem:

$|\overrightarrow{PS}|\sin\theta\\ =|\overrightarrow{PS}|\sin\theta\;\frac{|\textbf{v}|}{|\textbf{v}|}\\ =\frac{|\overrightarrow{PS}||\textbf{v}|\sin\theta}{|\textbf{v}|}\\ =\frac{|\overrightarrow{PS}||\textbf{v}||\sin\theta|}{|\textbf{v}|}\;\textrm{ since } \sin\theta\geqslant 0\textrm{ for }0\leqslant \theta\leqslant\frac{\pi}{2}\\ =\frac{|\overrightarrow{PS}\times\textbf{v}|}{|\textbf{v}|}\;\textrm{ according to the definition of the cross product}$ .

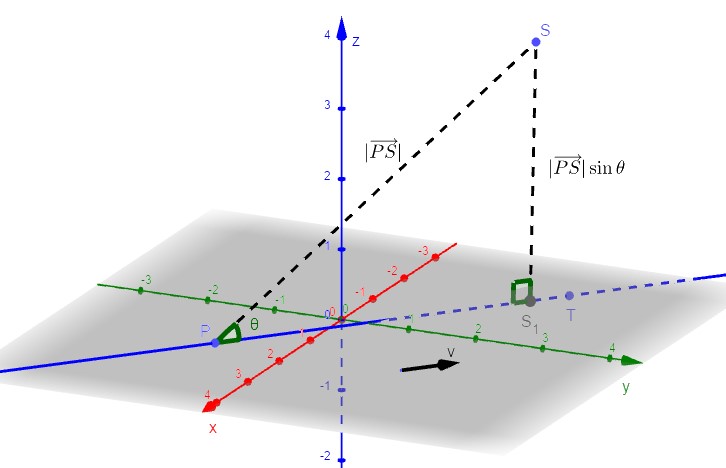

The graph below is meant to show the distance from a point to a line. Move point P or T to move the line; move point S to see the changes of the right triangle. Either point will give changes to the distance. The coordinates of points P, S, initial point of v and terminal point of v are given. You may check if the vectors in the calculation are correct (sorry for the minor rounding errors inside).

Betty, Created with GeoGebra and Thomas Calculus, Pearson.
